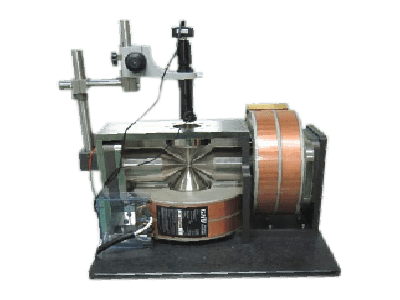

Dual Magnetic Probe Station (MPS50D)


* MPS is a dedicated equipment which provides magnetic field up to 1.5 Tesla (Vertical)
* MPS is a complete system integrating magnetic field, anti-vibration table and probing system. Since
this is highly dedicated tool, please contact us for more information.
* All standard CV, IV, microwave, and electro-optical probing can be performed
* Testing magneto-transport parameters.
* The main application is magnetic devices or materials.

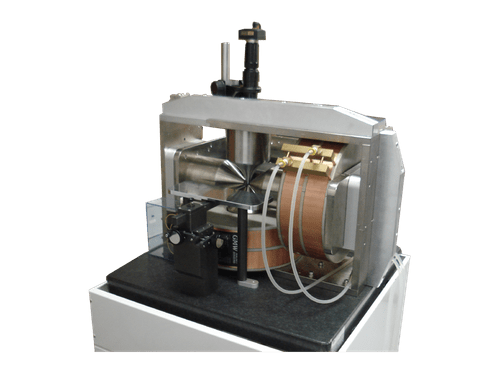

Dual Axis Magnetic Probe Station
Base Machine:
*Sample size: up to 10mmx10mm
*Sample stage Travel:  X-Y 10mm
*Anti-vibration table with 30mm granite plate
*Sample chuck rotate ±90° (option)
Electro Magnet: (two sets)
* 50mH inductance coil
* 1750W
* Pole included
Cooilng chiller (CS-10 one set)
Power Supply: (two sets)
*Input: 190-240VAC, 1Φ 2W, 50/60 Hz
*Output: 0-30VDC / 0-80A
*Max Power: 3.0KW
*Communication:  GPIB
* Labview Driver
* CE certificate
